317L Low Carbon Molybdenum Enhanced Stainless Steel Sheet with Superior Sulfuric Acid Resistance for Chemical Processing
| Herkunftsort | Shanxi, China |
|---|---|
| Markenname | Hongtu |
| Zertifizierung | ISO 9001:2015, SGS, ASTM A240/A240M, EN 10088-2 |
| Modellnummer | 317L (UNS S31703) |
| Min Bestellmenge | 500 KG |
| Preis | USD 4.2-6.8 / kg |
| Verpackung Informationen | PVC-Schutzfolie, Rostschutzpapier, Holzpalette in Exportqualität mit Stahlband, Vakuumverpackung ver |
| Lieferzeit | 5–10 Werktage für den Lagerbestand, 15–25 Tage für die Produktion |
| Zahlungsbedingungen | T/T, L/C, PayPal, Western Union |
| Versorgungsmaterial-Fähigkeit | 1500 Tonnen pro Monat |
Produktdetails
| Legierung | 317L (UNS S31703 / 1.4438) | Temperament | Aufgeklärt, kaltgewalzt, warmgewalzt |
|---|---|---|---|
| Dicke | 0.8mm - 50mm | Breite | 1000mm, 1219mm, 1250mm, 1500mm, 2000mm |
| Länge | 2000 mm, 2438 mm, 3000 mm, 6000 mm oder kundenspezifisch | Standard | ASTM A240, EN 10088-2, GB/T 4237, JIS G4304 |
| Oberflächenbeschaffenheit | Nr. 1, 2B, BA, Nr. 4, 8K | Zugfestigkeit | ≥ 515 MPa |
| Streckgrenze | ≥ 205 MPa | Verlängerung | ≥ 40% |
| PREN (Pitting-Widerstand) | ≥ 24,0 | Anwendung | Chemische Verarbeitung, REA-Systeme, Zellstoff und Papier, Lebensmittelverarbeitung, pharmazeutische |
| Hervorheben | 317L Molybdenum Stainless Steel Sheet,Chemical Processing SS 317L Plate,Acid Resistant 317L Alloy Sheet |
||
Produkt-Beschreibung

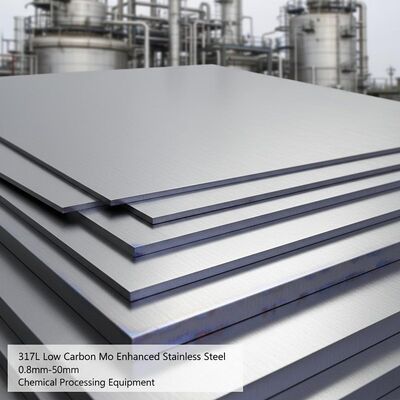

317L Low Carbon Molybdenum Enhanced Stainless Steel Sheet 0.8mm-50mm for Chemical Processing Equipment
Product Overview
317L is a premium austenitic stainless steel with enhanced molybdenum content (3.0-4.0%), providing significantly improved corrosion resistance over standard 316L in aggressive chemical environments. The low carbon grade (≤0.03% C) prevents intergranular corrosion in as-welded condition. This makes 317L the material of choice for chemical processing equipment, flue gas desulfurization (FGD) systems, pulp and paper digesters, and food processing involving acidic products.
Key Features
- Enhanced Molybdenum Content: 3.0-4.0% Mo provides superior resistance to pitting, crevice corrosion, and reducing acid attack
- Superior Sulfuric Acid Resistance: Excellent performance in sulfuric acid concentrations up to 5% at elevated temperatures
- Low Carbon (L-Grade): Maximum 0.03% carbon eliminates sensitization during welding, no post-weld heat treatment required
- Higher Nickel Content: 11.0-15.0% Ni improves resistance to stress corrosion cracking and enhances formability
- Excellent Pitting Resistance: PREN (Pitting Resistance Equivalent Number) ≥ 24.0, outperforming 316L (PREN 23.0)
- Good High-Temperature Strength: Superior creep rupture strength compared to 316L at elevated service temperatures
Chemical Composition (Weight %)
| Element | C | Mn | Si | P | S | Cr | Ni | Mo | N |
|---|---|---|---|---|---|---|---|---|---|
| 317L | ≤0.03 | ≤2.00 | ≤0.75 | ≤0.045 | ≤0.030 | 18.0-20.0 | 11.0-15.0 | 3.0-4.0 | ≤0.10 |
Mechanical Properties (Annealed, Room Temperature)
| Property | Value |
|---|---|
| Tensile Strength | ≥ 515 MPa |
| Yield Strength (0.2% offset) | ≥ 205 MPa |
| Elongation in 50mm | ≥ 40% |
| Hardness (Rockwell B) | ≤ 95 HRB |
| Density | 8.0 g/cm³ |
Available Dimensions
| Parameter | Range |
|---|---|
| Thickness | 0.8mm - 50mm |
| Width | 1000mm - 2000mm |
| Length | 2000mm - 6000mm or Custom |
| Surface Finish | No.1, 2B, BA, No.4, 8K Mirror |
Applications
- Chemical processing vessels, tanks and reactors
- Flue gas desulfurization (FGD) scrubber internals
- Pulp and paper digester and bleach plant equipment
- Food processing equipment handling acidic products
- Pharmaceutical manufacturing equipment and cleanrooms
- Textile dyeing and bleaching equipment
- Petrochemical and refinery sour service components
Our Advantages
- Verified Mo Content: Every batch spectrographically tested to confirm 3.0-4.0% molybdenum content
- Corrosion Test Reports: ASTM G48 pitting test and ASTM A262 intergranular corrosion test data available
- Low Carbon Guaranteed: ≤0.03% carbon verified on every heat with full traceability
- Custom Cutting: Precision water jet, laser and plasma cutting to your specified dimensions
- Global Shipping: Experienced in export documentation and packaging for chemical industry standards
Contact our technical team for a detailed quotation on 317L stainless steel sheets. Free samples and material certification provided.
