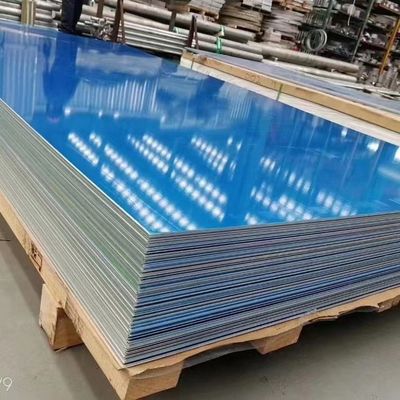

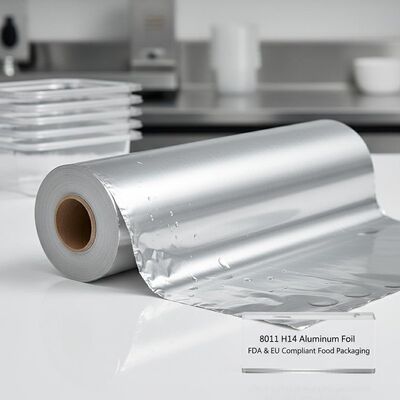

8011 H14 Aluminum Foil Sheet 0.1mm-3mm Thickness with Superior Barrier Properties for FDA and EU Compliant Food Packaging
| Herkunftsort | Shandong, China |
|---|---|
| Markenname | Hongtu |
| Zertifizierung | ISO 9001:2015, SGS, FDA, EU 1935/2004 Food Contact |
| Modellnummer | 8011-H14 |
| Min Bestellmenge | 500 KG |
| Preis | USD 2.4-3.5 / kg |
| Verpackung Informationen | Feuchtigkeitsbeständige PE-Folienverpackung, Holzpalette in Exportqualität mit Eckenschutz, Vakuumve |
| Lieferzeit | 3–5 Werktage für den Lagerbestand, 10–18 Tage für die Produktion |
| Zahlungsbedingungen | T/T, L/C, Paypal, Western Union |
| Versorgungsmaterial-Fähigkeit | 5000 Tonnen pro Monat |
Produktdetails
| Legierung | 8011 | Temperament | H14, H16, H18, H22, H24, O |
|---|---|---|---|
| Dicke | 0.1 mm - 3 mm | Breite | 200 mm, 500 mm, 800 mm, 1000 mm, 1240 mm, 1600 mm |
| Länge | Spulen- oder kundenspezifische Einzelblätter | Standard | ASTM B209, EN 546, GB/T 3198, YS/T 435 |
| Oberflächenbeschaffenheit | Hell, matt, Mill-Finish | Zugfestigkeit | 125 - 165 MPa |
| Streckgrenze | ≥ 105 MPa | Verlängerung | ≥ 2-4 % |
| Pinhole-Anzahl | ≤ 10 pro m² (aufgetragen) / ≤ 30 pro m² (nicht aufgetragen) | Anwendung | Lebensmittelverpackungen, pharmazeutische Blisterfolie, Flaschenverschlüsse, Behälterdeckel |
| Hervorheben | 8011 H14 Aluminum Foil Sheet,Food Grade Packaging Aluminum Alloy,Pharmaceutical Aluminum Blister Foil |
||
Produkt-Beschreibung
8011 H14 Aluminum Foil Sheet 0.1mm-3mm Thickness Pharmaceutical Grade Alloy
Specialized aluminum-iron-silicon alloy developed specifically for food and pharmaceutical packaging applications. Excellent barrier properties against moisture, light, oxygen and microorganisms ensure product freshness and shelf-life extension. Full compliance with FDA and EU 1935/2004 food contact material regulations.
Key Features
- Superior Barrier Properties: Impermeable to moisture vapor, oxygen, light and microorganisms
- Excellent Formability: H14 temper provides optimal balance of strength and ductility
- Food Contact Safe: Certified to FDA 21 CFR and EU 1935/2004 standards
- Heat Seal Compatible: Surface treatment available for lacquer coating adhesion
- Low Pinhole Rate: ISO certified production with rigorous online detection systems
- Recyclable: 100% recyclable aluminum supporting circular economy
Chemical Composition (Weight %)
| Element | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al |
|---|---|---|---|---|---|---|---|---|---|
| Min | 0.50 | 0.60 | - | - | - | - | - | - | Remainder |
| Max | 0.90 | 1.00 | 0.10 | 0.20 | 0.05 | 0.05 | 0.10 | 0.08 |
Mechanical Properties (H14 Temper)
| Property | Value |
|---|---|
| Tensile Strength | 125 - 165 MPa |
| Yield Strength | ≥ 105 MPa |
| Elongation | ≥ 2% (≤0.2mm), ≥ 4% (>0.2mm) |
| Density | 2.71 g/cm³ |
| Wettability (for coating) | Grade A (≥ 32 dyne/cm) |
Available Dimensions
| Parameter | Range |
|---|---|
| Thickness | 0.1mm - 3mm |
| Width | 200mm - 1600mm |
| Length | Coil form or custom cut sheets |
| Temper | H14, H16, H18, H22, H24, O |
| Core ID | 76mm, 150mm, 300mm, 400mm |
Applications
- Pharmaceutical blister pack base foil (PTP aluminum foil)
- Food container and tray lids (yogurt, ready meals, pet food)
- Beverage bottle caps and closure seals
- Butter, chocolate and confectionery wrapping
- Household aluminum foil and food wrap
- Tetra Pak and aseptic packaging laminates
- Capacitor foil and cable shielding
Our Advantages
- Food Safety Certified: FDA, EU 1935/2004 and ISO 22000 compliant production
- Zero Defect Program: Online pinhole detection and surface inspection on every coil
- Clean Room Packaging: Thin gauge foil packed in ISO Class 8 cleanroom
- Slitting Precision: ±0.2mm width tolerance with burr-free edges
- Global Logistics: Vacuum-packed with desiccant for moisture protection
Contact us for a competitive quotation on 8011 H14 aluminum foil sheets. Free samples and technical datasheets available upon request.
