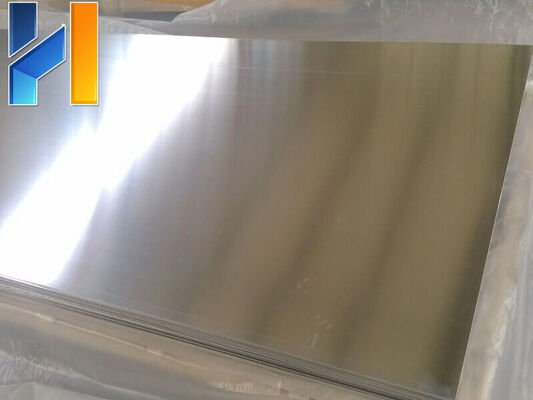

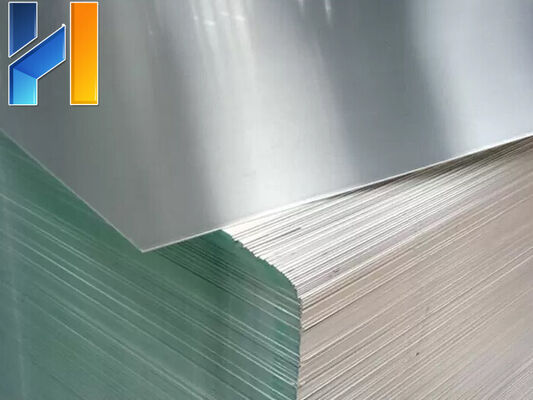

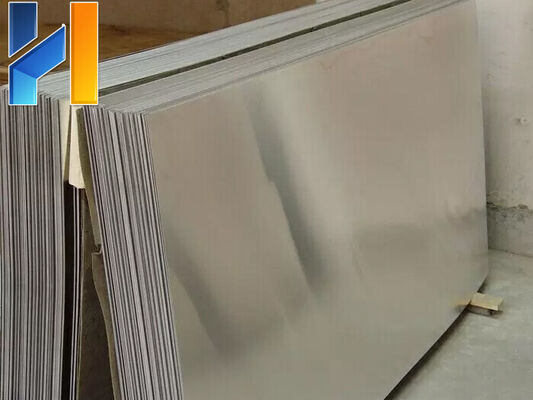

High-Strength EN AW-6082 Aluminum Plate with 0.2-200mm Thickness and T66 Temper for Industrial Applications

  • High-Strength EN AW-6082 Aluminum Plate with 0.2-200mm Thickness and T66 Temper for Industrial Applications
  • High-Strength EN AW-6082 Aluminum Plate with 0.2-200mm Thickness and T66 Temper for Industrial Applications
  • High-Strength EN AW-6082 Aluminum Plate with 0.2-200mm Thickness and T66 Temper for Industrial Applications
Min Bestellmenge 500kg
Produktdetails
Dickenbereich 0,2-200 mm Breitenbereich 100 bis 2000 mm
Längenoptionen 2000 mm, 2440 mm, 6000 mm Legierungskomposition EN AW-6082
Siliziumgehalt 0,20 – 0,60 % Magnesiuminhalt 0,60 -1,20 %
Mangan-Inhalt 0,40 – 1,00 % Kupfergehalt 0,15 – 0,40 %
Eisengehalt 0,10 – 0,30 % Chrominhalt 0,25 Max. %
Zinkinhalt 0,15 Max. % Titaninhalt 0,20 Max. %
Temperament T66 Zugfestigkeit Minimum: 245 MPa
Verlängerung Minimum: 16 %
Hervorheben

EN AW-6082 Aluminum Plate

,

0.2-200mm Thickness Aluminum Sheet

,

T66 Temper AlZn4.5Mg1 Plate
Hinterlass eine Nachricht
Produkt-Beschreibung
AlZn4.5Mg1 / 7020 / 3.4335 Aluminum Plate/Sheet
Discover our premium aluminum plates, engineered for durability and versatility. Available in thicknesses from 0.2mm to 500mm and widths exceeding 200mm, these plates are ideal for a wide range of industrial and commercial applications.
Key Features
  • Superior Durability: Robust construction for long-lasting performance
  • Versatile Applications: Suitable for construction, automotive, electronics, and more
  • Lightweight & Strong: Excellent strength-to-weight ratio for efficient designs
  • Customizable Options: Available in various alloys, sizes, and finishes
Target Industries & Applications: Construction, Automotive, Aerospace, Electronics, Manufacturing, Marine, Renewable Energy, and more.
High-Strength EN AW-6082 Aluminum Plate with 0.2-200mm Thickness and T66 Temper for Industrial Applications 0 High-Strength EN AW-6082 Aluminum Plate with 0.2-200mm Thickness and T66 Temper for Industrial Applications 1 High-Strength EN AW-6082 Aluminum Plate with 0.2-200mm Thickness and T66 Temper for Industrial Applications 2
Product Specifications
Minimum Order Quantity (MOQ) 500 Kg
Packaging & Delivery Standard export package, such as wooden box or as required
Technical Specifications
General Specifications
Item Standard Material Alloys Size Range
Aluminum Sheet GB/T3190-2008, GB/T3880-2006, ASTM B209, JIS H4000-2006, etc. 1050, 1060, 2A14, 3003, 3103, 4032, 5454, 5754, 5056, 5082, 5086, 6061, 6060, 6082, 7075, 7475 Thickness: 0.2-200mm, Width: 100-2000mm, Length: 2000mm, 2440mm, 6000mm, or as required
Surface Finishes Mill Test Certification is supplied with shipment, Third Part Inspection is acceptable Bright, polished, hair line, brush, sand blast, checkered, embossed, etching, etc.
Trade Terms Price term: Ex-Work, FOB, CNF, CFR, etc. Payment Term: TT, L/C, Western Union, etc.
Delivery Time 1. Immediate delivery for in-stock products upon payment receipt.
2. Prompt delivery based on order quantity.
Container Size 20ft GP: 5898mm(L)x2352mm(W)x2393mm(H) - 24-26 CBM
40ft GP: 12032mm(L)x2352mm(W)x2393mm(H) - 54 CBM
40ft HC: 12032mm(L)x2352mm(W)x2698mm(H) - 68 CBM
Common Alloy Compositions
Alloy %Si %Mg %Mn %Cu %Fe %Cr %Zn %Ti %Others %Al
EN AW-1050 A0.25Max0.05Max0.05Max0.05Max0.40Max–0.07Max0.05Max–99.5 Min
EN AW-1070 A0.20Max0.03Max0.03Max0.03Max0.25Max–0.07Max0.03Max–99.7 Min
EN AW-1100Si+Fe 0.95 Max–0.05 Max0.05 – 0.20––0.10 Max0.05 Max–99.0 Min
EN AW-20110.40 Max––5.00 – 6.000.70 Max–0.30 Max–Bi : 0.20 – 0.60
Pb : 0.20 – 0.60		Remainder
EN AW-20140.50 – 1.200.20 – 0.800.40 – 1.203.90 – 5.000.70 Max0.10 Max0.25 Max0.15 Max–Remainder
EN AW-20240.50 Max1.20 -1.800.30 – 0.903.80 – 4.900.50 Max0.10 Max0.25 Max0.15 Max0.15 MaxRemainder
EN AW-30030.60 Max–1.00 – 1.500.05 – 0.200.70 Max–0.10 Max–0.15 MaxRemainder
EN AW-31030.50 Max0.30 Max0.90 – 1.500.10 Max0.70 Max0.10 Max0.20 Max0.10 Max–Remainder
EN AW-6101A0.30 – 0.70.40 – 0.900.03 Max0.05 Max0.40 Max––0.10 MaxRemainder
EN AW-60050.60 – 0.900.40 – 0.600.10 Max0.10 Max0.35 Max0.10 Max0.10 Max–Remainder
EN AW-63510.70 – 1.300.40 – 0.800.40 – 0.800.10 Max0.50 Max–0.20 Max0.20 Max0.15 MaxRemainder
EN AW-60600.30 – 0.600.35 – 0.600.10 Max0.10 Max0.10 – 0.300.05 Max0.15 Max0.10 Max–Remainder
EN AW-60610.40 – 0.800.80 – 1.200.15 Max0.15 – 0.400.70 Max0.04 – 0.350.25 Max0.15 Max–Remainder
EN AW-60630.20 – 0.600.45 – 0.900.10 Max0.10 Max0.35 Max0.10 Max0.10 Max0.10 Max–Remainder
EN AW-60820.70 – 1.300.60 -1.200.40 – 1.000.10 Max0.50 Max0.25 Max0.20 Max0.10 Max–Remainder
Mechanical Properties (Examples)
Alloy Temper UTS (Mpa) Yield Strength (Mpa) Elongation (%) A 50mm
EN AW-1050 AFMinimum: 60, Maximum: –Minimum: 20, Maximum: –Minimum: 23
EN AW-1050 AOMinimum: 60, Maximum: 95Minimum: 20, Maximum: –Minimum: 23
EN AW-1070 AFMinimum: 60, Maximum: –Minimum: 20, Maximum: –Minimum: 23
EN AW-1100OMinimum: 75, Maximum: 110Minimum: –, Maximum: –Minimum: 25
EN AW-2011T4Minimum: 275, Maximum: –Minimum: 125, Maximum: –Minimum: 12
EN AW-2011T6Minimum: 310, Maximum: –Minimum: 230, Maximum: –Minimum: 6
EN AW-2014OMinimum: –, Maximum: 250Minimum: –, Maximum: 135Minimum: 10
EN AW-2014T4Minimum: 370, Maximum: –Minimum: –, Maximum: 230Minimum: 11
EN AW-2014T6Minimum: 415, Maximum: –Minimum: –, Maximum: 370Minimum: 5
EN AW-2024OMinimum: –, Maximum: 250Minimum: –, Maximum: 150Minimum: 10
EN AW-2024T3,T3510,T3511Minimum: 395, Maximum: –Minimum: –, Maximum: 290Minimum: 6
EN AW-2024T8,T8510,T8511Minimum: 455, Maximum: –Minimum: –, Maximum: 380Minimum: 4
EN AW-3003FMinimum: 95, Maximum: –Minimum: –, Maximum: 35Minimum: 20
EN AW-3003OMinimum: 95, Maximum: 135Minimum: –, Maximum: –Minimum: 20
EN AW-3103FMinimum: 95, Maximum: –Minimum: –, Maximum: 35Minimum: 20
EN AW-3103OMinimum: 95, Maximum: 135Minimum: –, Maximum: –Minimum: 20
EN AW-6101AT6Minimum: 200, Maximum: –Minimum: –, Maximum: 170Minimum: 8
EN AW-6005T4Minimum: 180, Maximum: –Minimum: –, Maximum: 90Minimum: 13
EN AW-6005T6Minimum: 270, Maximum: –Minimum: –, Maximum: 225Minimum: 6
EN AW-6351OMinimum: –, Maximum: 160Minimum: –, Maximum: 110Minimum: 12
EN AW-6351T4Minimum: 205, Maximum: –Minimum: –, Maximum: 110Minimum: 12
EN AW-6351T6Minimum: 290, Maximum: –Minimum: –, Maximum: 250Minimum: 6
EN AW-6060T4Minimum: 120, Maximum: –Minimum: –, Maximum: 60Minimum: 12
EN AW-6060T5Minimum: 160, Maximum: –Minimum: –, Maximum: 120Minimum: 6
EN AW-6060T6Minimum: 190, Maximum: –Minimum: –, Maximum: 150Minimum: 6
EN AW-6060T64Minimum: 180, Maximum: –Minimum: –, Maximum: 120Minimum: 10
EN AW-6060T66Minimum: 215, Maximum: –Minimum: –, Maximum: 160Minimum: 6
EN AW-6061OMinimum: –, Maximum: 150Minimum: –, Maximum: 110Minimum: 14
EN AW-6061T4Minimum: 180, Maximum: –Minimum: –, Maximum: 110Minimum: 13
EN AW-6061T6Minimum: 260, Maximum: –Minimum: –, Maximum: 240Minimum: 6
EN AW-6063OMinimum: –, Maximum: 130Minimum: –, Maximum: –Minimum: 16
EN AW-6063T4Minimum: 130, Maximum: –Minimum: –, Maximum: 65Minimum: 12
EN AW-6063T5Minimum: 175, Maximum: –Minimum: –, Maximum: 130Minimum: 6
EN AW-6063T6Minimum: 215, Maximum: –Minimum: –, Maximum: 170Minimum: 6
EN AW-6063T66Minimum: 245, Maximum: –Minimum: –, Maximum: 200Minimum: 6
EN AW-6082OMinimum: –, Maximum: 160Minimum: –, Maximum: 110Minimum: 12
EN AW-6082T4Minimum: 205, Maximum: –Minimum: –, Maximum: 110Minimum: 12
EN AW-6082T5Minimum: 270, Maximum: –Minimum: –, Maximum: 230Minimum: 6
EN AW-6082T6Minimum: 290, Maximum: –Minimum: –, Maximum: 250Minimum: 6
